It is sometimes necessary to issue a wildcard certificate from your internal Microsoft CA, I had such a requirement this week and thought it would make a nice blog post.

The post assumes you have a Enterprise CA already deployed and a web server template deployed and available for enrolment.

First we need to create the certificate request that will be issued to your CA.

1. Logon to a Windows 2008 R2 or Windows 7 domain member

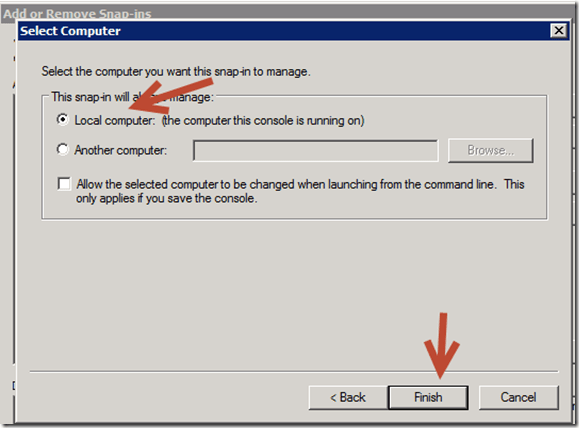

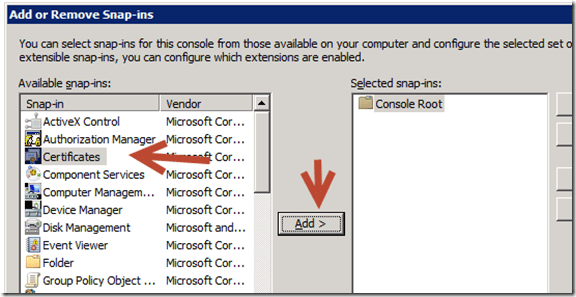

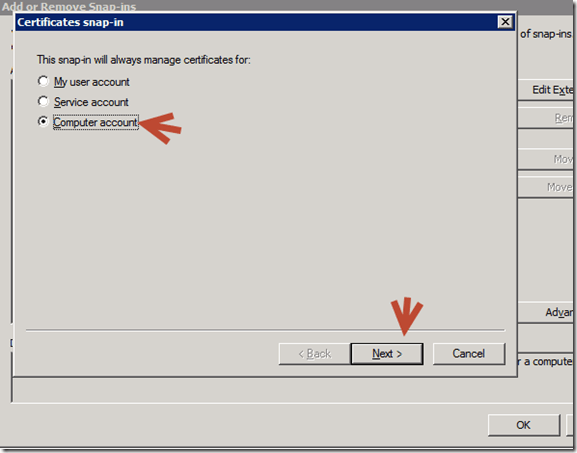

2. Open the certificates MMC snap-in

Now create the certificate request

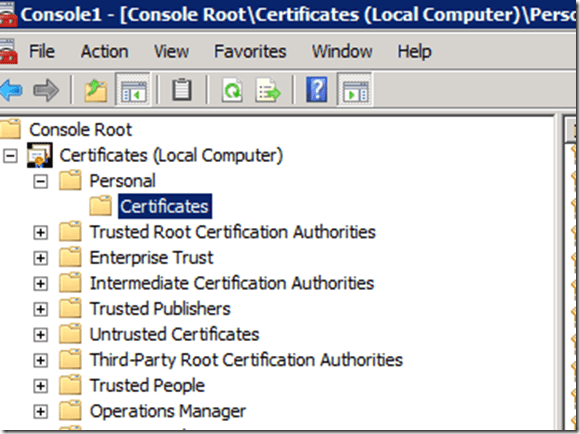

3. Right click the Certificates folder which is found under the personal folder

4. Select All Tasks > Advanced Options > Create Custom Request

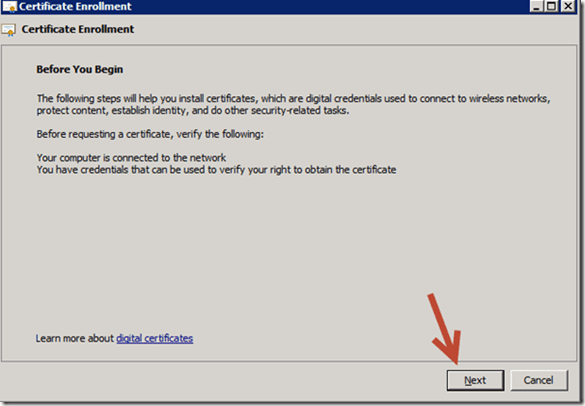

5. In the Certificate Enrolment Wizard Click Next

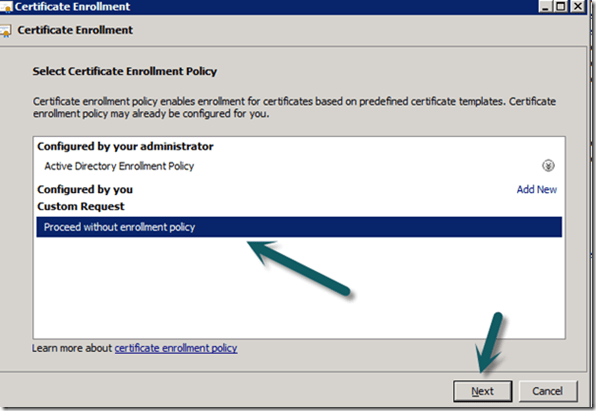

6. In the Certificate Enrollment Page select Custom Request > Proceed without enrolment Policy and then select Next

7. In the Custom Request Page select (No template) Legacy Key from…
