WCCPv2 and Squid-cache v3.1, a nice couple.

CCIE, the beginning!

WCCP protocol can be much more interesting than the two commands needed for the CCIE exam. In this lab we will deploy a basic end-to-end solution using IOS 15.2S and the well known open-source solution Squid v3.1 as the content engine.

WCCP version2 is deployed in the lab.

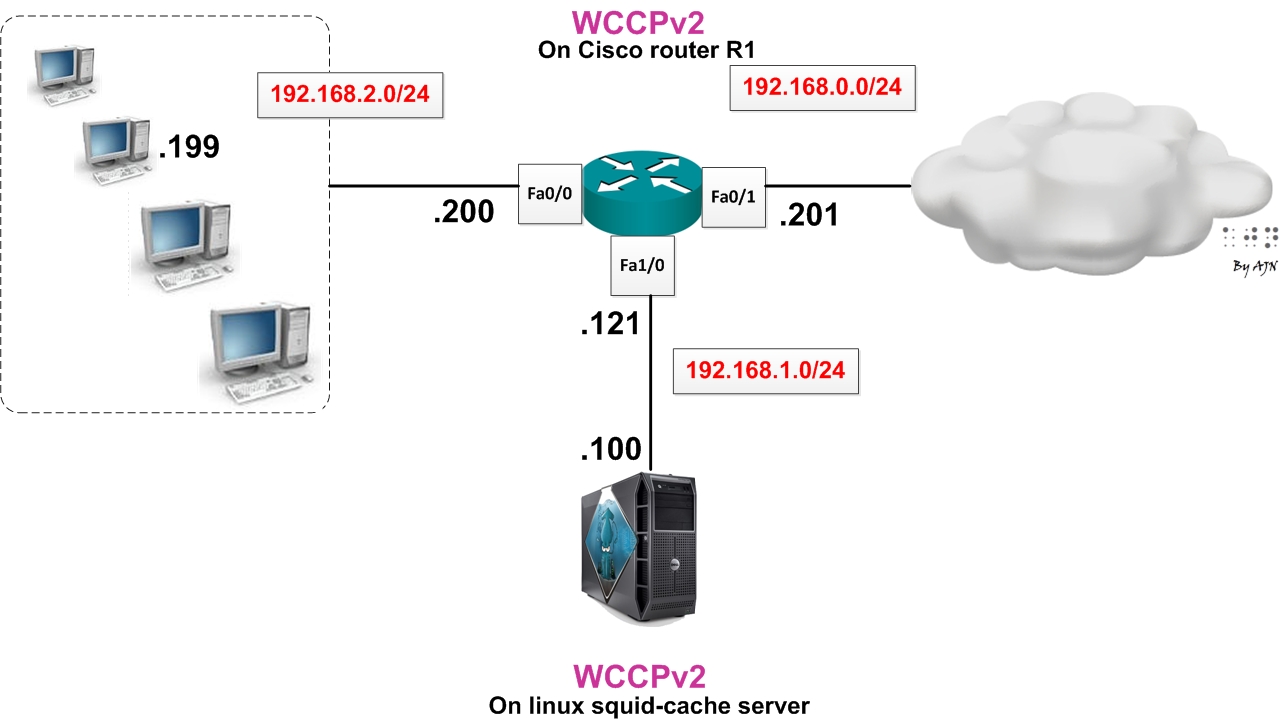

1-Topology

wccpv2top1

WCCP enables the router to transparently intercept client traffic destined to Internet and redirect it to a local content engine. Client browsers doesn’t point to the content engine as proxy.

Cisco and the content engine communicate through unidirectional point-to-point tunnels (either layer2 or GRE ).

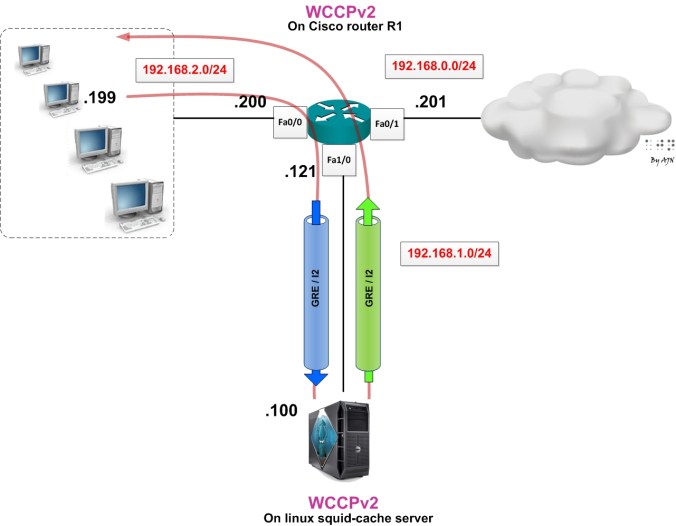

2-WCCPv2 Interception

wccpv2top2

The tunnel interfaces are automatically created in order to process outgoing GRE-encapsulated traffic for WCCP.
Short definitions of some related concepts:

Forward proxy Filter access to Internet and reduces BW related to Internet static resources like regular updates, big file downloads…
Reverse proxy Allows external users (ex: on Internet) to access internal servers. Generally supports…

View original post 567 more words
